Product introduction

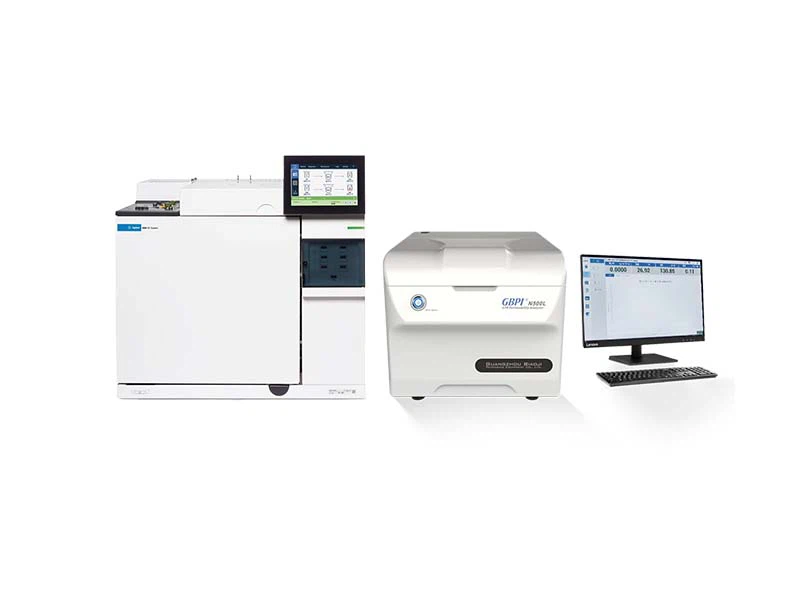

The GTR-10H gas permeation analysis system consists of a differential pressure permeation device and a gas chromatograph. It can test and analyze the gas permeability of various single-component gases and mixed gases, and can accurately calculate the permeability, permeability coefficient and other parameters of each component gas. The test gas has a wide range of types and high accuracy, and is suitable for gas permeation testing in the fields of fuel cell proton exchange membrane gas permeability testing, hydrogen permeation of hydrogen storage materials, gas density of bipolar plate materials, and natural gas storage materials.
Test principle
Place the processed sample between the high-pressure chamber and the low-pressure chamber, and the low-pressure chamber is connected to the gas chromatograph through a quantitative loop. At the set test temperature, use a vacuum pump to evacuate the gas system, and then add a certain pressure of test gas to the upper chamber to form a constant pressure difference between the upper and lower chambers. Under the action of the pressure gradient, the gas penetrates from the high-pressure chamber to the low-pressure chamber through the film. The system injects the gas that penetrates into the low-pressure chamber into the gas chromatography column and separates it into various components, and calculates the gas permeability, gas permeability coefficient and other barrier performance parameters of each component.
Standard
GB/T 20042.3,GB/T 20042.6-2011,GB/T 1038.1-2022,ISO 15105-1
Specification
|
Item |
Technical Parameters |
|
Test range |
2.0×10-12~3.0×10-7 mol/(m2·s.Pa) |
|
Detection system |
Gas chromatography (GC), TCD detector |
|
Test gas |
Gases such as hydrogen, oxygen, nitrogen, carbon dioxide, carbon monoxide, methane, etc., single component or mixed component |
|
Gas pressure |
0~300kPa |
|
Permeation module temperature control range |
15~60℃ |
|
Temperature control accuracy |
±0.1℃ |
|
Permeation area |
50.24 cm2 |
|
Sample size |
Φ110 mm |
|
Sample thickness |
≤2 mm |
|
Sample quantity |
1 piece |
|
Power supply |
AC 220 V,50 Hz |
Features
Advanced gas chromatography analysis technology
The instrument is equipped with an advanced gas chromatography analysis module and a new microcomputer temperature control system, which can achieve 16-step program temperature rise with high temperature control accuracy; it adopts multi-processor parallel working mode, and can be equipped with a variety of high-performance detectors. The instrument is stable and reliable, equipped with a 7-inch color LCD touch screen and a dedicated workstation, which is convenient to operate and easy to process data.
Fully automatic precision control of permeation module test temperature
The permeation module uses semiconductor refrigeration chips to automatically control the temperature in both directions, with higher temperature control accuracy, up to 0.1℃.
Can test the permeability of single gas and mixed gas
It can measure the permeability of a single gas and the permeability of different mixed gases at the same time, and has a wide range of uses. In addition to its application in the traditional packaging industry, it has broad application prospects in new energy fields such as hydrogen energy.
