Introduction

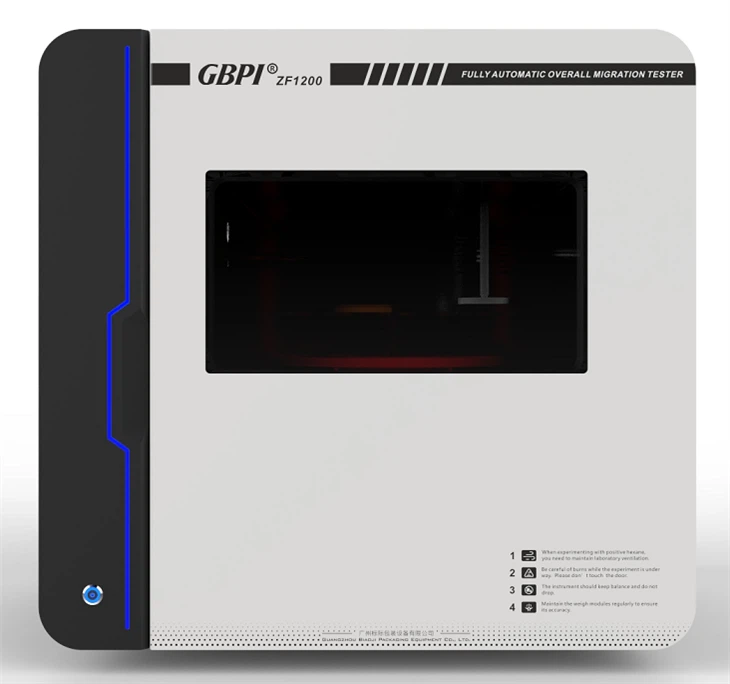

Full-Automatic Overall Migration Tester AUTO ZF1200 has an integrated system design of water bath evaporation, heating and drying, drying and cooling, and constant temperature weighing.The test process is fully automated without manual participation. It is suitable for testing the total migration (non-volatile matter, evaporation residue) and other items in the fields of purified water, pharmaceutical packaging materials, food packaging, cigarette tipping paper and chemical reagents. It can also be applied to the water content, loss on drying and other items of solid samples, and the total dissolved solids content test in water quality testing.

Test principle

Put the solution to be tested into the solvent storage dish of the automatic feeding system. The evaporation cup in the test chamber is heated according to the set temperature, cooled, weighed, and the steps are repeated until the constant weight value is reached. Add the solution to be tested into the evaporating cup, heat and evaporate in a water bath, heat the cavity to 105°C for drying, and cool down. After the evaporating dish is cooled, use a balance (sensitivity: 0.01mg) to judge the constant weight, and the experiment is terminated if the constant weight requirement of the project is met.

Standard

Purified water: "Purified water" in Part Two of "Chinese Pharmacopoeia" 2020 Edition, "European Pharmacopoeia" EP9.0 WATER, PURIFIED

Pharmaceutical packaging materials: non-volatile items in the dissolution test of "National Standards for Pharmaceutical Packaging Materials"

Food contact materials: GB 31604.8-2016, EN 1186-3:2002 method A, Standards and Specifications for Utensils, Containers and Packages of Korea Ministry of Health and Welfare chapter IV 2-8.

Cigarette tipping paper and chemical reagents: GB/T 9740-2008

Water quality testing: GB 8538-2016, DZT0064.9-2021, GBT 14415-2007, GBT5750.4-2006

Solid samples (drugs, etc.): "Chinese Pharmacopoeia" 2020 Edition Four "Extraction" and "Loss on Drying" items,

"United States Pharmacopoeia" USP40-NF35<921> WATER DETERMINATION

Specification

Item	Technical Parameters
Measuring range (residue weight)	(0～80) g
Resolution	0.01 mg
Balance capacity	(0～220) g
Constant weight error value	0.3 mg
Water bath temperature control range	Room temperature～100℃
Cavity temperature control range	Room temperature～125℃
Temperature accuracy	±0.5℃
Number of samples	12 pcs (data is separate)
Evaporating dish volume	50 mL
Dimensions	(900×880×900) mm
Power supply	220V, 50Hz
Rated power	4 KW
System	Windows 10 pro 64

Application

	Purified water	Applicable to the test of non-volatile content in purified water and sterile water for injection in the pharmaceutical industry.
	Drug packaging material	It is suitable for the test of non-volatile items in the dissolution test of plastic and rubber pharmaceutical packaging materials
	Food contact material	It is suitable for various food utensils, containers and food packaging films, cans or other food tools, pipes and other products made of polyethylene, polystyrene, polypropylene, perchlorethylene resin as raw materials in different food simulants Determination of total migration after immersion.
	Cigarette pack material	Applicable to the total migration test of the soaking liquid of cigarette tipping paper.
	Chemical reagent	Suitable for chemical reagents, such as ethanol, acetic acid, n-hexane, chloroform and other organic solvents with a boiling point below 100℃ for evaporation residue testing.
	Domestic water and drinking water, industrial water, sewage	It is suitable for the total dissolved solids test of domestic drinking water, drinking natural mineral water, ground water, drinking water, swimming pool water, urban sewage, industrial boiler water, etc.
	Solid samples, pharmaceutical particles	Applicable to solid samples, such as empty capsules, microcrystalline cellulose and other medicines, or other solid particles for loss on drying, dryness or moisture testing.
