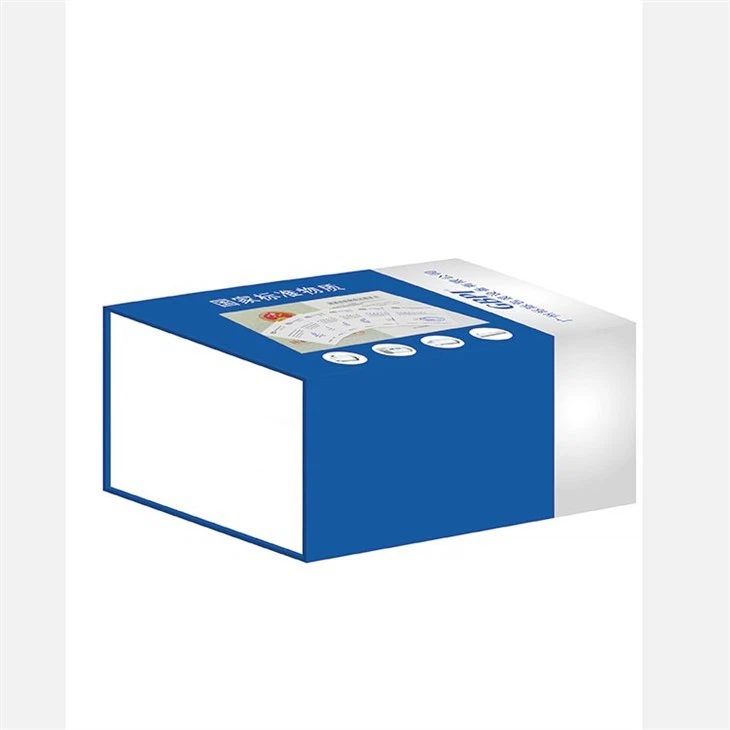

Polyester Reference Calibration Material

For a long time, there is a blank in the reference materials for packaging testing instruments in the industry. The Measuring Development Plan (2013- 2020) issued by State Council points out that Food safety, clinical laboratory, biological, environmental protection, material science become the focus of research and development of reference materials. Now, the reference materials of gas permeability, water vapor permeability and oxygen permeability produced by GBPI win the affirmation of Grade Secondary Reference Materials. GBPI becomes the first development organization of the reference materials of film permeability. These reference materials are mainly applied to the calibration and inspection of the gas permeability, water vapor permeability and oxygen permeability of packaging of food and drug. Reference Materials plays a very important role in packaging testing.

Send Inquiry

Feature

A substance or material that has been determined to have a sufficiently uniform property value, as a "measuring device" in the analytical measurement industry.

Function

● Calibrate, adjust and identify instrument and devices.

● Product quality control during the production

● Examine operation level the analyst

● Test characteristic value of substance or material

Standards of Reference Materials

Reference Materials of Gas Permeability:

125μm Polyester Film Certified Reference Material of Gas Permeability

[Certificate Number: GBW（E）130541]

300μm Polyester Film Certified Reference Material of Gas Permeability

[Certificate Number: GBW（E）130542]

Reference Materials of Water Vapor Permeability:

125μm Polyester Film Certified Reference Material of Water Vapor Permeability

[Certificate Number: GBW（E）130543]

300μm Polyester Film Certified Reference Material of Water Vapor Permeability

[Certificate Number: GBW（E）130544]

Reference Materials of Oxygen Permeability:

25μm Polyester Film Certified Reference Material of Oxygen Permeability

[Certificate Number: GBW（E）130497]

125μm Polyester Film Certified Reference Material of Oxygen Permeability

[Certificate Number: GBW（E）130498]

(Note: Reference Materials of Gas Permeability are applicable to all oxygen permeability analyzers which adopt Pressure Differential Method; Reference Materials of Water Vapor Permeability are applicable to all water vapor permeability analyzers which adopt Dish Method; Reference Materials of Oxygen Permeability are applicable to all oxygen permeability analyzers which adopt Coulometric Sensor Method.)

Reference Value of Reference Materials

Reference Materials Polyester Film（PET）	Reference value of transmission rate	Specif-cation	Type
Reference Materials Polyester Film（PET）	GTR（11.2±2.1）cm3/(m2·24h· 0.1MPa)	125μm	Gas Perme-ability
Reference Materials Polyester Film（PET）	GTR（4.7±1.2）cm3/(m2·24h·0.1MPa)	300μm	Gas Perme-ability
Reference Materials Polyester Film（PET）	WVT（4.4 ± 0.8）g/ (m2·24h)	125μm	Water Vapor Perme-ability
Reference Materials Polyester Film（PET）	WVT（1.8 ± 0.3）g/ (m2·24h)	300μm	Water Vapor Perme-ability
Reference Materials Polyester Film（PET）	OTR（62.8±2.9）cm3/(m2·24h)	25μm	Oxygen Perme-ability
Reference Materials Polyester Film（PET）	OTR（12.3±0.9）cm3/ (m2·24h)	125μm	Oxygen Perme-ability
