Introduction

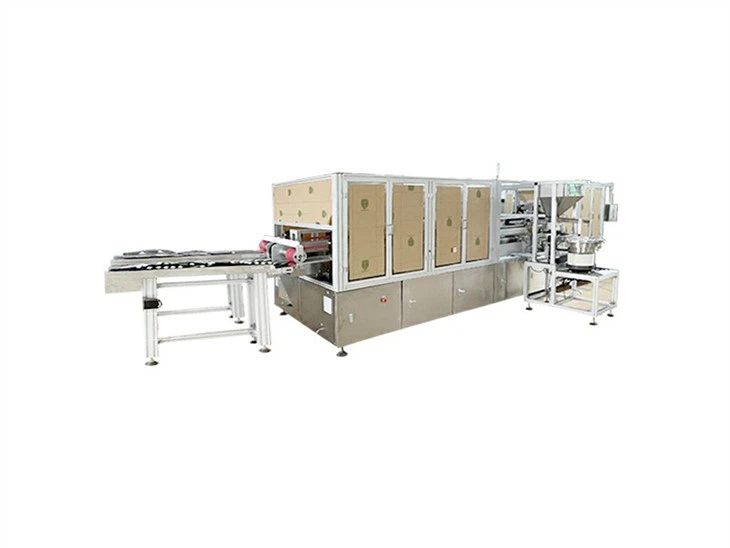

The spout inserting and sealing machine is specialized in fully automatic spout inserting and heat sealing machinery for flexible packaging. It is applied to a variety of spouts and bags of different diameters and lengths, such as stand-up pouches, three-side sealing pouches, and daypacks. Products are suitable for food, beverages, daily chemicals, pharmaceutical, cosmetics, etc.
Specifications
Item | Technical parameters |
Pouch Style | stand-up spout pouch, three-side sealing bag, corner spout pouch, penguin-shaped pouch with spout. |
Control System
| Omron programmable controller（PLC） |
Servo motor | |
Material type | Bag: inner layer PE, inner layer PP Spout：PE, PP |
Seal width | 60~120mm |
Pouch Size | Max：300(W)~400(L)mm Min：130(W)~150(L)mm |
Spout size | Diameter 8.5mm(regular), diameter 10mm |
Capacity (Depending on the product) | Dual-channel（A,B）70 pcs/min in total Single-channel 35 pcs/min， Can work independently |
Position accuracy | ≦±0.05 mm |
Heat Sealing System | Preheating: none (Optional ); heat sealing: 4 sets; cooling: 1 set |
Temperature Control System | 3 groups, precision±0.1℃ |
Temperature Range | 0~300℃ |
Features
1. This product has consisted of a spout supply system, bag supply system, heat sealing system and bag discharging system. Each system is operated fully automatically, production capacity is 70 pieces per minute.
2. Using a dual-station bag supply system to increase production efficiency
3. The bag size can be adjusted arbitrarily within the maximum length of 400mm and the maximum width of 300mm, and can also be customized according to customer needs.
4. The heat sealing system is divided into gradual heating and cooling. The sealing jaw can be customized and switched according to different spout sizes.
System structure
♦ The machine consists of spout supply system, bag supply system, heat sealing system, bag discharge system, central control system.
♦ Spout supply system includes hopper which put the spout, vibrating plate and slide rail. The photoelectric sensor can automatically sense the spout to control the supply progress.
♦ The bag supply system utilizes pneumatic suction to grab and supply the bags. Both the bag supply system and heat sealing systems are dual-channel, high efficiency.
♦ The heat sealing system includes a synchronous belt, heat sealing jaws, and station frame. There are 5 sets of sealing jaws, 4 sets for heat sealing and 1 set for cooling.
♦ The heat-sealing station frame is adjustable to fit different bags. Users can also customize different heat sealing jaws according to different spout size.
♦ The temperature control and setting of each sealing jaw is independent, the operation and debugging also can be independent.
♦ The bag discharge system is equipped with a conveyor belt , stepping-control, automatic arrangement of bag, which can observe defective products and be convenient to install a coding machine.
♦ The control panel is equipped with a touch screen, which can complete various parameter settings and display the working status in real-time, such as the number of finished products, date, servo motor parameters, and cylinder action parameters, heat sealing time, etc.
